IFAK III
For Soldiers in Field Deployment
The aim of the project is to create a military Improved First Aid Kit (IFAK) with ergonomic features that allow soldiers to rapidly deploy without mobility restriction in combat. This product must include essential equipment requirements provided by the Law Enforcement Officer (LEO).
Project Type
Product Design / Medical / Safety Aid
Team
Individual Project
Problem
Soldiers serving in the military frequently encounter unforeseen traumatic emergencies, leading to elevated rates of injuries and fatalities. In such instances, they undergo rigorous training of utilizing Individual First Aid Kit to promptly address these situations. Nonetheless, the chaotic and high-stress environment of combat can lead to delays in soldiers’ response, potentially resulting in fatal consequences.
Existing Product Study
Currently, US Army Soldiers are provided with IFAK II. It is comprised of supplies and equipment on the right.
Item | Qty |
|---|---|
Pouch IFAK, Gen II | 1 |
Insert, IFAK Gen II | 1 |
Tourniquet Holder, IFAK Gen II | 2 |
Tourniquet, Non-Pneumatic, One Handed | 2 |
Hemorrhage Bandage | 1 |
Compressed Gauze | 1 |
Tape | 1 |
Nasopharyngeal | 1 |
Glove | 2 |
Tactical Combat Casualty Care (TCCC) Card | 1 |
Chest Seal Dressing, Twin Pack | 1 |
Eye Shield | 1 |
Military Personnel Interviews
2 Combat Medics and 1 Combat Veteran were interviewed.
Key Issues Addressed by Military Personnel
Access to Supplies:
Seperation of supplies in the hidden pocket hinders quick access to all supplies when deployed.
Entanglement Issue:
Bungee cord restrainer is helpful when preventing insert from falling out, but it may lead to mobility and entanglement issues after deployment.
Design Iteration and Design Development
Prototypes were tested and refined for quick deployment and easy equipment accessibility.

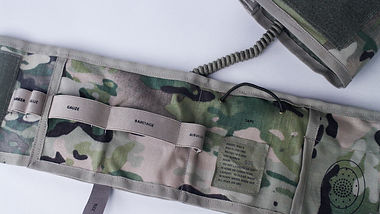

Final Design
Final prototype was made with 500D Cordura® Nylon - MultiCam®.
Key Features
Quick acces to all supplies with rip-away deployment
After use, velcro backing of pouch and insert prevents entanglement issues
Single row arrangement of all supplies
Pull straps for quick access to bigger supplies (chest seal, gloves, TCCC Card)
Glove flat packaging and addition of superglue
Molle system compatible with soldiers’ uniform and equipments
