Electric Lyre
Harmony Reimagined
The electrical lyre is a musical instrument that blends traditional lyre design with modern electric guitar technology. It has a unique shape that provides users to easily pluck every string from both the front and back.
Project Type
Product Design / Instrument
Traditional Lyre
The lyre is a stringed musical instrument with a rich history, dating back to ancient times. It features a U-shaped body and typically has strings that are plucked to produce melodic sounds, evoking a sense of grace and enchantment.

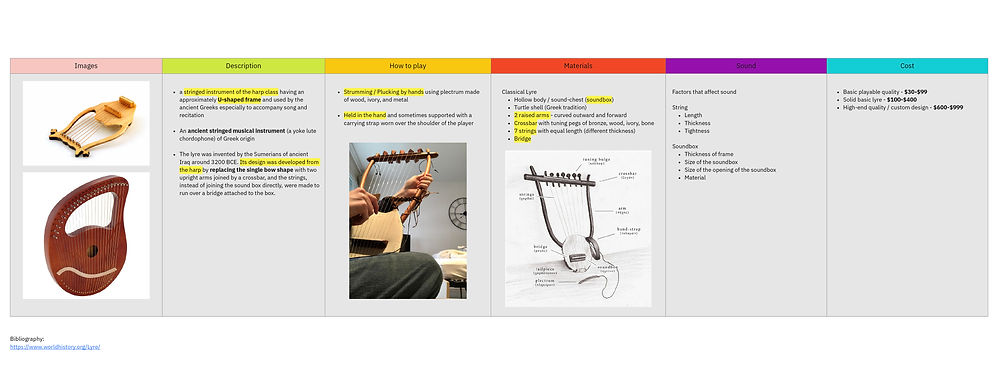

Background Research
Researched on traditional lyre to further understand the instrument before designing.
.jpg)

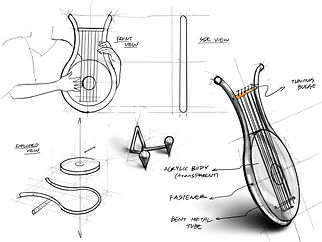

Ideation
Took different approaches to ideating ergonomic forms that enhance user experience (sound and comfort).




Fabrication Process
Woodworking, soldering, and laser cutting was done.

Cut wood

Glue 2 layers of wood with grain going in different directions

Cut into the chosen design

Drill out areas for electrical compartments

Laser cut out pickguard

Solder 2 pickups together and stain wood

Assemble
Crafted from carefully selected Birch hardwood, the lyre's body boasts resonant properties and exceptional durability. Through an electrical approach to its design, I had the opportunity to create an ergonomically comfortable instrument with an asymmetrical, sleek curvature. Utilizing electric strings with pickups beneath each, it captures every note, producing a rich, full-bodied sound, while conveniently positioned controls on the lower body offer precise adjustments. What sets this lyre apart is the fusion of traditional wood and striking glossy black acrylic materials, resulting in a visually stunning instrument. This electric guitar lyre represents a harmonious blend of modern and traditional elements, culminating in a powerful and captivating musical experience.


How it is played
